ATEX China Supplier 36 Vdc 3w Sign Lighting Led Explosion Proof
Exit Lights
Features:
1. The radiator is designed to be made of special cast aluminum
alloy by die-casting, and its surface is sprayed with high voltage
static electricity;
2. Exposed stainless steel fasteners with high corrosion
resistance;
3. Separate structure of light source cavity and power supply
cavity;
4. Specially designed light distribution system, with high light
utilization rate, reasonable light distribution, uniform
illumination and no glare;
5. The junction box is of labyrinth structure, equipped with
silicone rubber sealing strip, firmly pasted, and of high
protection grade;
6. Toughened glass made of high-strength material, with strong
impact resistance, thermal shock resistance and high light
transmittance;
7. The constant current power supply has wide voltage input and
constant current output, and has the protection functions of shunt,
surge prevention, overcurrent, open circuit, open circuit, high
temperature, anti electromagnetic interference, etc;
Specification:
| Specification |
| Ex Marking | II 2GD Ex d e IIC T6 Gb |
| Classification | Group II, Catogory 2 GD; Class I, Division 1 and 2, |
| IP Degree | IP66 |
| Charging time | 24 hours |
| Input voltage | AC220V / DC24V / DC36V |
| Wattage | 3W |
| Emergency time | 90mins |
| Conduit entries | G3/4 |
| Mounting style | wall, bracket, ceiling |
| Weight | 2.1kgs |
Application:
1. A wide range of hazardous areas where ignitable vapors, dust,
moisture and corrosive elements are present
2. Areas requiring frequent on-and-off of lights or power cycling-
no warm up time required
3. Areas with high energy costs
4. Typical applications include: Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation
Company introduction:
Changzhou JUJUN Ex-proof company is a comprehensive enterprise
integrating R&D, production, sales and service.
We mainly produce and operate maintenance-free LED explosion-proof
lamps, explosion-proof lamps, explosion-proof electrical
appliances, explosion-proof accessories, low-voltage electrical
components, molds, power distribution switch control equipment and
other products.
It is located in the Yangtze River Delta region, on the verge of
Shanghai, with convenient transportation, welcome customers to
visit our factory.
FAQ:
Q:What certificates do you have for explosion proof led light
fixture?
A:We have passed ATEX.
Q:What place are your products used in?
A:They are widely used in petroleum chemical, aerospace, coal
electrical power, railway, metallurgy, shipbuilding, medicine,
marine, wine-making, fire fighting, municipal and other industries.
Q:Can I have a sample order for explosion proof led light fixture?
A:Yes, we welcome sample orders to test and check quality. Mixed
samples are acceptable.
Q:Can you accept OEM or ODM for explosion proof led lighting?
A:Yes. Please inform us and confirm the design firstly based on our
sample.
Q: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control
system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with
new order for small quantity. For
defective batch products, we will repair them and resend them to
you or we can discuss the solution i
ncluding re-call according to real situation.

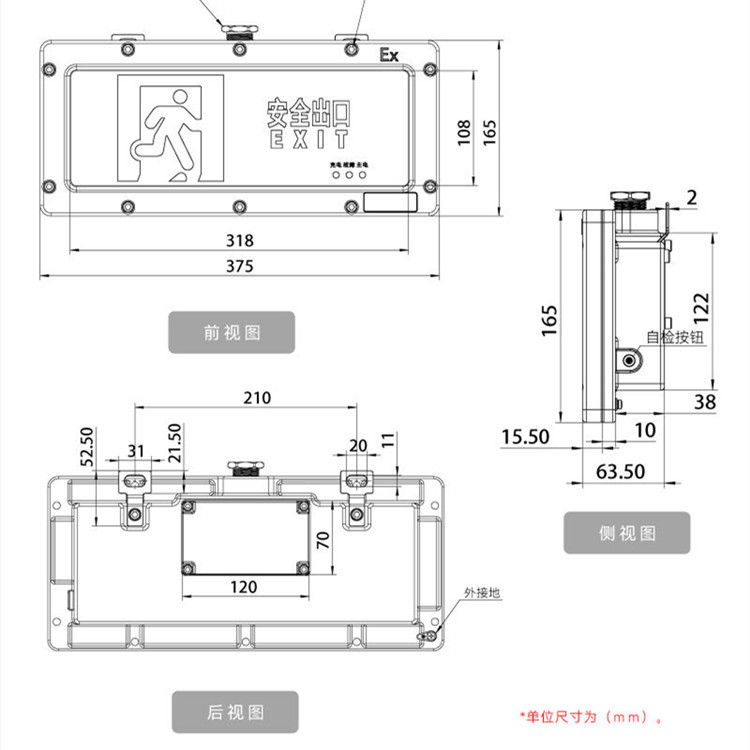

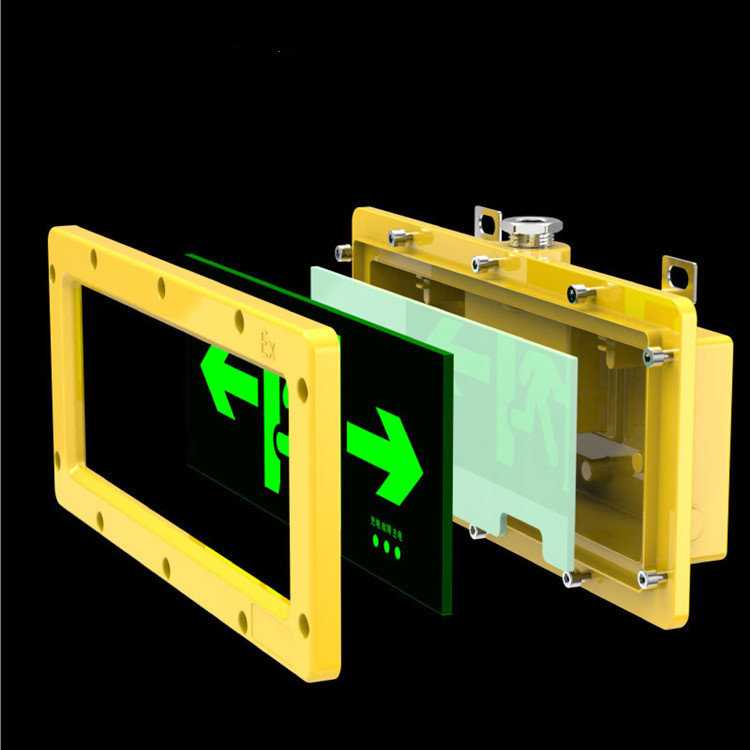

Products details:
