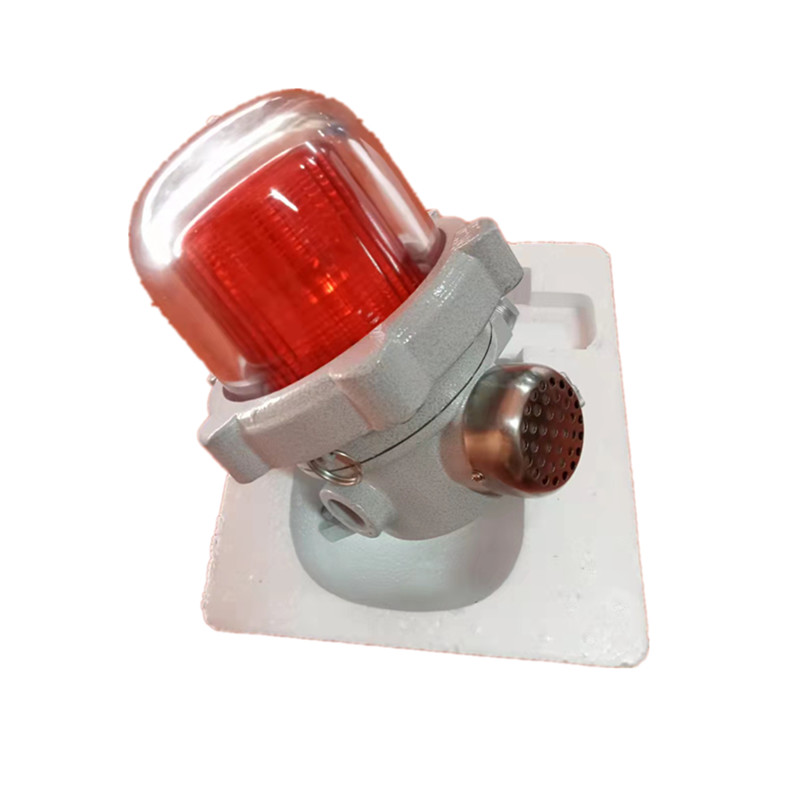

ATEX Approved 120db Beacon Lamps 220vac 110vac Explosion Proof
Strobe And Sounder Lights
Features:
The lamp adopts a pure explosion-proof and increased safety
structure, which can be used when the gas and dust environment of
the corresponding explosion-proof level exist at the same time;
The lens has high light efficiency, fogging anti-glare design, and
a large luminous angle;
It is suitable for ceiling-mounted and wall-mounted installation,
steel pipe or cable wiring.
High-protection structural sealing design, equipped with
aging-resistant silicone rubber sealing gasket, to achieve good
protection performance;
The product shell adopts one-time die-casting molding process, the
product surface is smooth, the appearance is beautiful and
generous, the internal structure of the metal is high-density,
there are no defects such as bubbles and sand holes, and the
product shell has strong impact resistance and good protection
performance;
Equipped with brand drive device, wide voltage input, with constant
current, open circuit protection, short circuit protection, surge
protection and other functions;
Specification:
| Ex Marking | II 2GD Ex d e IIC T6 Gb/DIP A21 TA, T6 |
| Classification | Group II, Catogory 2 GD; Class I, Division 1 and 2,Group A,B,C,D; |
| IP Degree | IP65 |
| Corrosion Resistant | WF1/WF2 |
| Input Voltage | AC110V / 220V / DC24V / DC36V |
| Wattage | 10w; |
| Sound Strength | 120; |
| Flash Frequency | 150/Min |
| Color | Red, Yellow, Blue, Green |
| Emergency start time | <0.3s |
| Conduit Entries | G 3/4" |
| Mounting Styles | Base; Stanchion |
| Net Weight | 2.5kg; |
Application:
1. A wide range of hazardous areas where ignitable vapors, dust,
moisture and corrosive elements are present
2. Areas requiring frequent on-and-off of lights or power cycling-
no warm up time required
3. Areas with high energy costs
4. Typical applications include:
Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation
Company introduction:
Changzhou JUJUN Ex-proof company is a professional LED lighting
manufacturer and it founded in 2011, Specialized in explosion proof
led lights, strobe and sounder light, plug and sockets, junction
boxes, switches, push buttons, exhuast fan, axial flow fan and so
on.
There are 30,00 square meters of factory buildings. With over 10
years of lighting experience, profound industry knowledge in the
field of the explosion proof light, appliances etc.
FAQ:
Q1. Can I have a sample order for explosion proof led light ?
A: Yes, we welcome sample order to test and check quality. Mixed
samples are acceptable.
Q2. What about the lead time of explosion proof led light?
A:Sample needs 5-7 days, mass production time needs 1-2 weeks for
order quantity more than
Q3. Do you have any MOQ limit for explosion proof led light?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 7-10
days to arrive. Airline and sea shipping also optional.
Q5: Do you offer guarantee for explosion proof led light?
A: Yes, we offer 3-5 years warranty to our products.
Q6:Can I have a sample order for explosion proof led light fixture?
A:Yes, we welcome sample orders to test and check quality. Mixed
samples are acceptable.
Q7:Can you accept OEM or ODM for explosion proof led lighting?
A:Yes. Please inform us and confirm the design firstly based on our
sample.
